Smart Home Automation using ARM Cortex M4-based STM32 and IoT
Introduction
IIn this era of IoT advancement, we present an integrated home automation solution leveraging the ARM Cortex-M4 architecture implemented on an STM32F303 Discovery board. Our system architecture incorporates multiple sensor nodes (KY-026 flame sensor, KY-018 photoresistor, DHT11 temperature/humidity sensor) and actuator modules controlled by L293D drivers, creating a comprehensive environmental monitoring and control framework. The system's core functionality is enhanced through cloud connectivity via an ESP32 Wi-Fi module, enabling remote management of household systems through AWS IoT and ThingSpeak platforms.
Project Overview

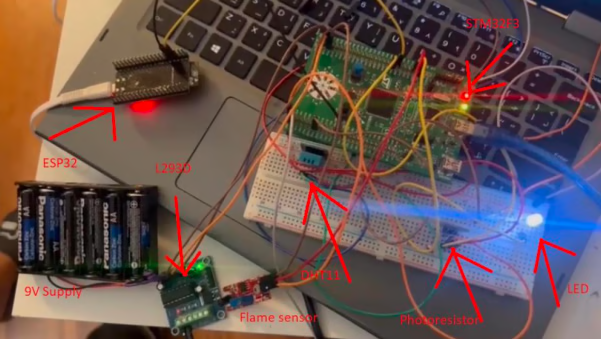

Key Components:
STM32 Microcontroller:
  • DModel :
    STM32F303 Discovery board featuring the ARM Cortex-M4 core.
  • Function :
    Acts as the central processing unit, handling data from various sensors and controlling actuators.
  • Programming Environment :
    STM32CubeIDE for firmware development, utilizing the ARM Cortex-M4 architecture for high performance and efficiency.
Sensors:
  • Flame Sensor KY-026 :
    Detects fire hazards and activates safety protocols.
  • Photoresistor KY-018 :
    Adjusts lighting based on ambient light conditions.
  • DHT11 :
    Monitors temperature and humidity, contributing to climate control.
Actuators:
  • Motor Driver (L293D) :
    Controls motors for various home automation tasks, such as operating fans and water pumps.

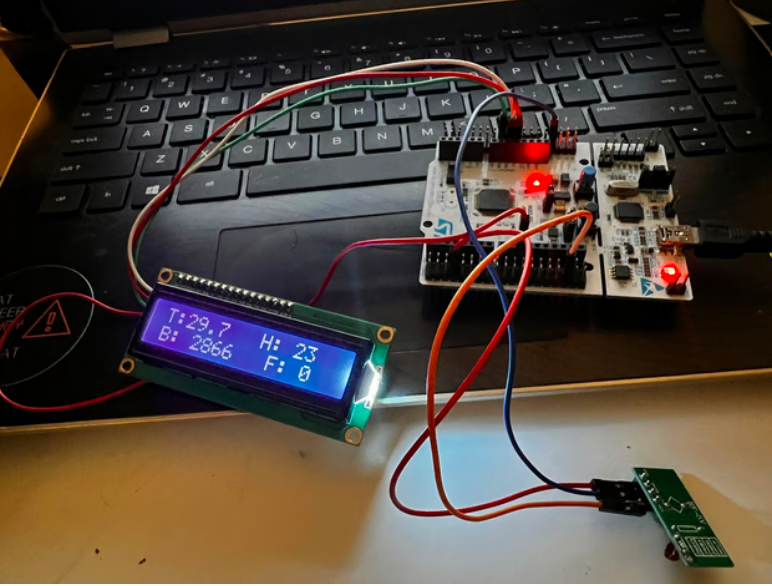

  • 16x2 LCD Display :
    Provides real-time data display for easy monitoring and user interaction.
Connectivity:
  • ESP32 Wi-Fi Module :
    Enables the system to function as an IoT node, facilitating real-time data monitoring and control via cloud platforms like AWS IoT and ThingSpeak.
Features:
  • User-Friendly Interface :
    The system includes a 16x2 I2C display and STM32CubeIDE's "Live Expression" feature for on-site monitoring.
  • Real-Time Monitoring :
    Allows users to track home conditions and control devices remotely.
  • Cloud Integration :

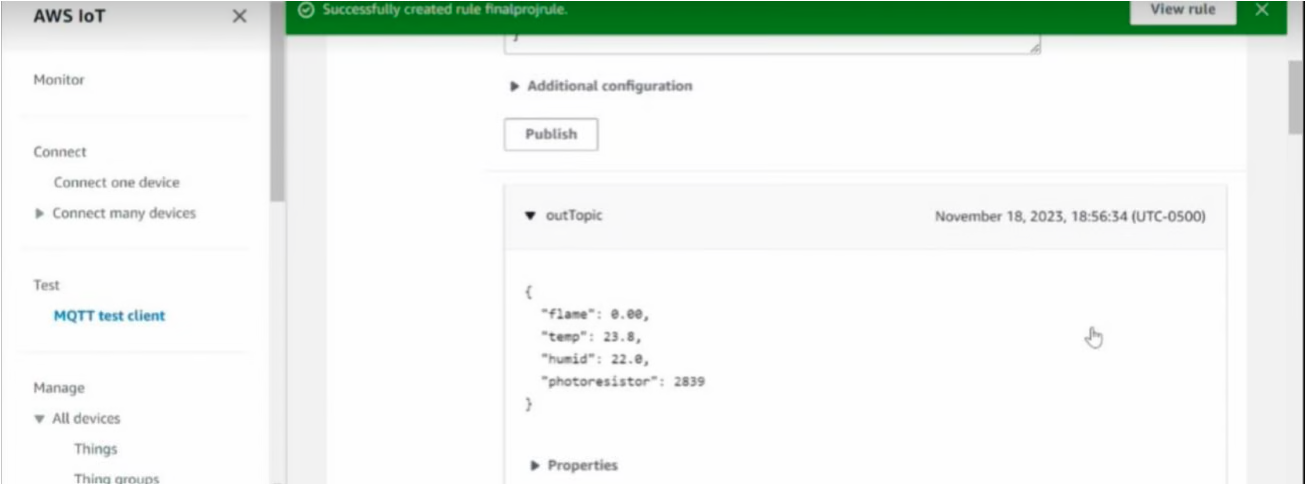

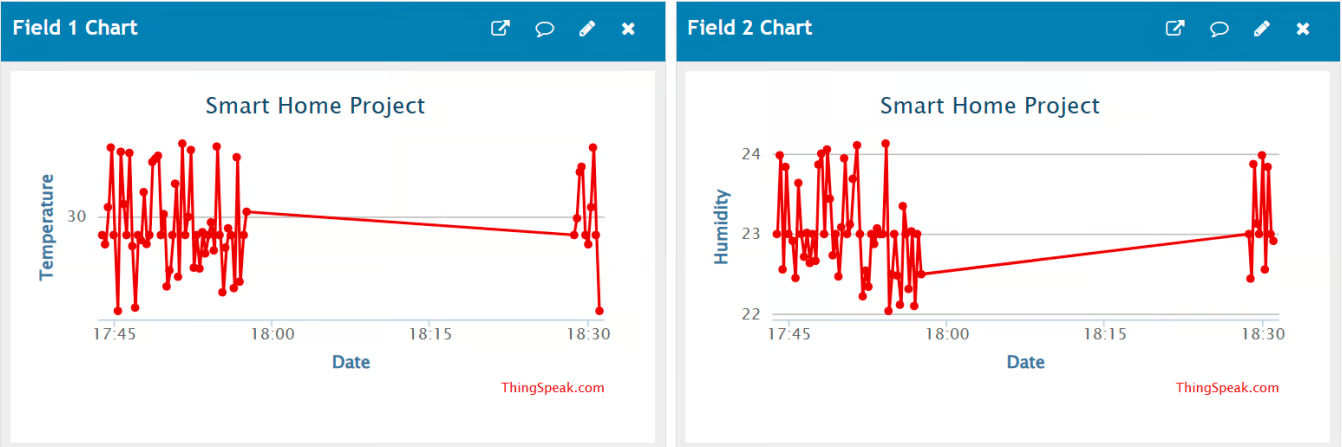

    Data is sent to AWS IoT and ThingSpeak for analysis and remote control, enhancing the system's functionality and accessibility.
System Context
  • Users :
    Homeowners can monitor and control home devices via a mobile app or web interface.
  • Integration :
    The system uses various sensors for environmental monitoring and connects to cloud platforms for data analysis and remote control.
Benefits
  • Enhanced Efficiency :
    Automates routine tasks, improving energy efficiency and convenience.
  • Safety :
    Provides real-time alerts for fire hazards and other environmental issues.
  • Scalability :
    Can be expanded to include additional sensors and actuators for more comprehensive home automation.
